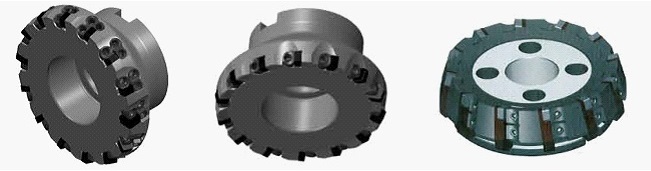

Milling Solid CBN
Insert code:
Material: Solid CBN (Cubic Boron Nitride)
Grade: as Cutting material
Usage: Milling Hardened steel, Gray Cast iron, etc.
Application:
Descriptions
Milling Solid CBN has many advantages:
- Professional Edges design for Milling; Super-precision Edges preparation,
- Faster Material Removal rate,
- Longer Lifetime,
- Lower Composite Cost.
| ·SNEN-ENS |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SNEN 0903 ENS | 9.525 | 9.525 | 3.18 | 0.8 |
| SNEN 0904 ENS | 9.525 | 9.525 | 4.76 | 0.8 |
| SNEN 1204 ENS | 12.7 | 12.7 | 4.76 | 1.2 |
| SNEN 1207 ENS | 12.7 | 12.7 | 7.94 | 1.2 |
| ·SNEX (WIPER) |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SNEX 1203 ZZ | 9.525 | 9.525 | 3.18 | 1.2 |
| SNEX 1204 ZZ | 12.7 | 12.7 | 4.76 | 1.2 |
| ·SNEN-XGR |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SNEN 0904 XGR | 9.525 | 9.525 | 4.76 | 0.8 |
| SNEN 1207 XGR | 12.7 | 12.7 | 7.94 | 1.2 |
| ·SNEN-EDE |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SNEN 1204 EDE | 9.525 | 9.525 | 4.76 | |
| ·SCEN |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SCEN 150712 | 15.525 | 15.525 | 7.94 | 1.2 |
| ·SCGN |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| SCGN 09048 22T | 9.525 | 4.76 | ||
| ·RNEN |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| RNEN 0903 | 9.525 | 9.525 | 3.18 | |
| RNEN 0903 | 9.525 | 9.525 | 4.76 | |
| RNEN 1207 | 9.525 | 9.525 | 4.76 | |
| ·KNK |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| KNK 20W | 15.0 | 5.64 | ||
| ·OPHN |  | |||
| Designation | L (mm) | I.C (mm) | S (mm) | R (mm) |
| OPHN 0504 ZZH-A75 | 12.7 | 4.76 | ||
